Features:
--High quality LED light source that provides high contrast and a large visual angle.
--Supports multiple peripheral interfaces.
--Equipped with a stainless steel outer box, providing a solid structure and strong corrosion resistance.
Applications:
Port machinery and plants
Specifications:

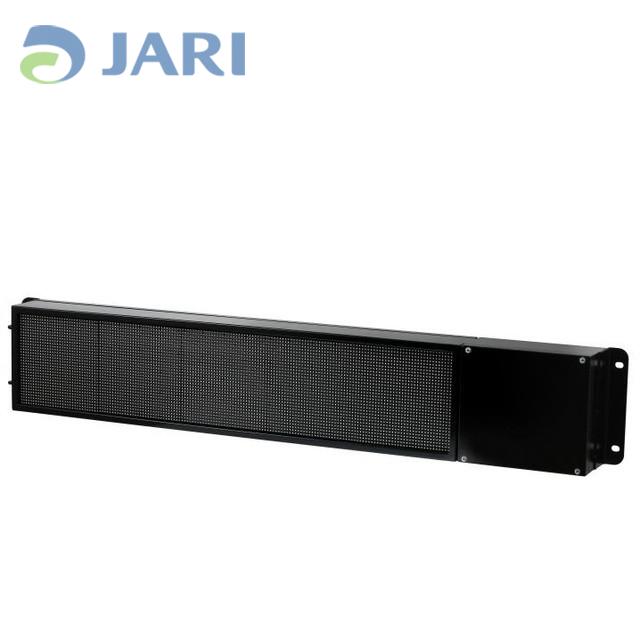

Model | JR-LD300 |
Working Voltage | AC220V, 50/60Hz |
Display Color | Red, Green |
Viewing Angle | ＞ 140° |
Visual Range | ＞ 50m |
Image Resolution | 96*32 |
Communication Interface | RJ45, 485 |
Working Temperature | -30℃～60℃ |
IP Rating | IP65 |
N.W | 12kg |
Dimension | L880×W225×H110mm |
Model | JR-LD500 |
Working Voltage | AC220V, 50/60Hz |
Display Color | Red, Green |
Viewing Angle | ＞ 120° |
Visual Range | ＞ 50m |
Image Resolution | 160*32 |
Communication Interface | RJ45, 485 |
Working Temperature | -30℃～60℃ |
IP Rating | IP65 |
N.W | 12kg |
Dimension | L1350×W225×H130mm |

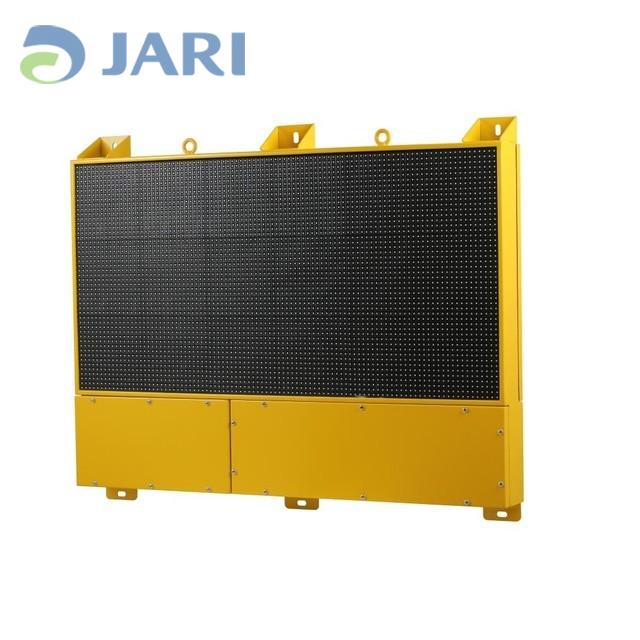

Model | JR-LD900 |
Working Voltage | AC220V, 50/60Hz |
Display Color | Red, Green |
Viewing Angle | ＞ 140° |
Visual Range | ＞ 50m |
Image Resolution | 96*48 |
Communication Interface | RJ45, 485,DP |
Working Temperature | -30℃～60℃ |
IP Rating | IP65 |
N.W | 35kg |
Dimension | L985×W797×H104mm |
